Bike Repair Station SV1

Self-Service Bike Repair Station SV1 is adapted for use in public spaces. The advantage of this model is its small size, which allows it to be mounted almost anywhere. The construction of this model does not allow the bike to be hung on the grip.

The housing of the device is made of galvanised or stainless steel (AISI 304) profile with powder or thermoplastic coating. The device is mounted to the ground or wall with the aid of anchors. The tools are attached to the stainless steel ropes coming out of the station column. The station is equipped in a hand pump with an adapter for all valve types. Sheet metal elements of the device are fastened with anti-theft screws – the bits for these screws will be handed over to the customer. The QR CODE placed on the station allows you to use online publications containing instructions on repairing bicycle faults.

This model of the station can be equipped with a mobile installation ground plate – hot-dip galvanised. This solution allows you to make the station available during opening hours, e.g. in restaurants, bicycle service points, tourist information. You do not need to mount the station permanently to the ground; instead, you can place it in the mobile plate and fasten it to an existing durable element with a steel rope and a padlock.

Product features & components

• Housing made of galvanised or stainless steel (AISI 304)
• Powder or thermoplastic coating
• Up to 2500 cm2 of advertising area
• QR CODE with repair manual

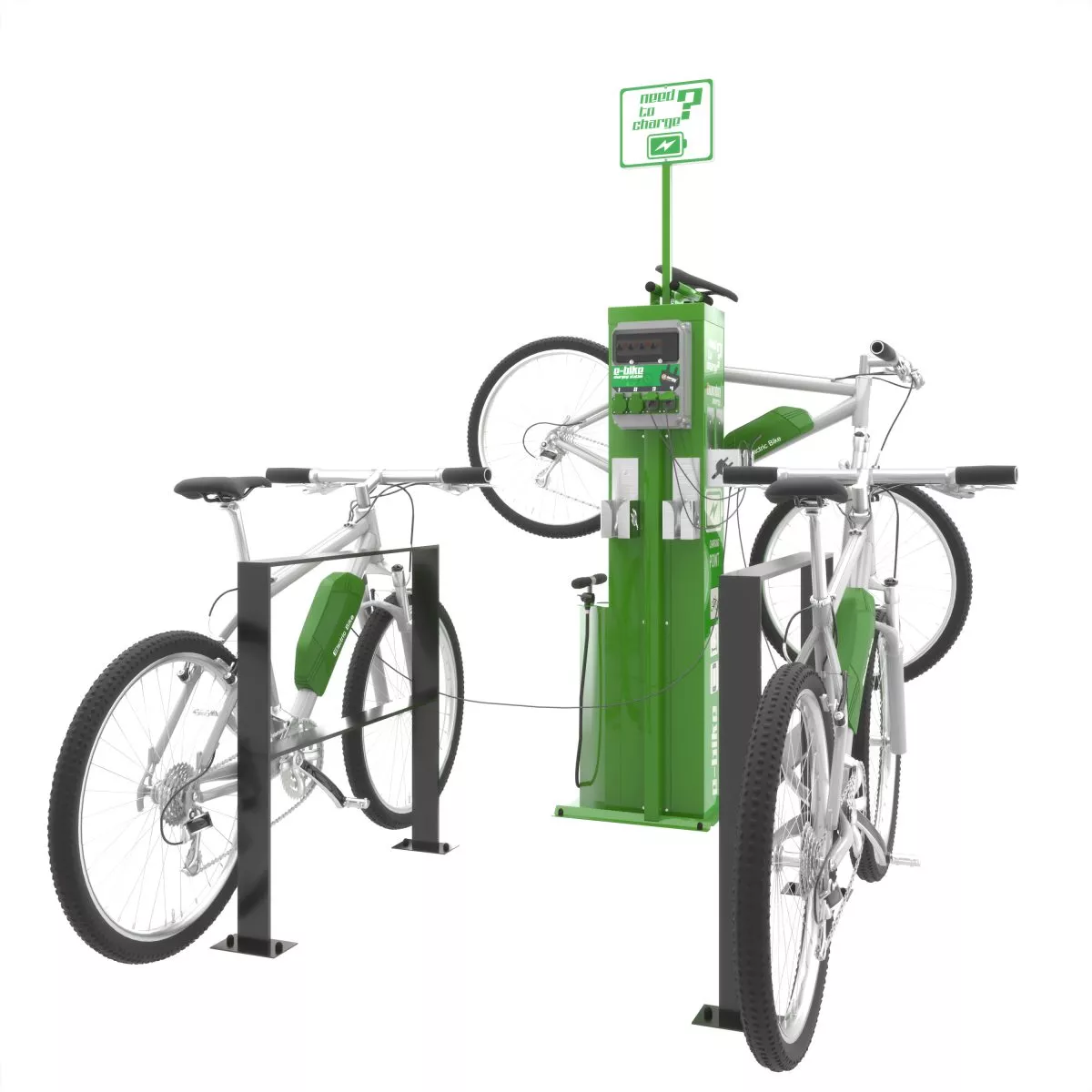

• E-BIKE charging module
• Big side-or-back bike stand – powder coated
• Small side-or-back bike stand – stainless steel (AISI 304)
• Anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
• Mobile installation ground plate – hot-dip galvanised
• Stainless steel ropes fi 4 (AISI 316)
• Phillips screwdriver PH2 + swivel fi4 (AISI 304)
• Flat screwdriver 5.5 x 1.0 + swivel
• Hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivel
• Adjustable spanner 0-32 mm
• 2 x tire levers with stainless steel core – nylon coated
• Stationary hand pump with a piston (fi 14) and a handle (fi 32) made of non-rusting steel (AISI 304) – pressure range from 0÷10 BAR + Glycerine Manometer (Antifog) + (PA6) pump piston aluminium sealant
• Dual chamber anodized aluminum pump adapter AISIPRO HEAD™ with industrial grade AISI304 stainless steel internals dedicated to all types of bicycle valves (Presta, Schrader and Dunlop)
